SW-54

tuned to tomorrow

See and hear this astonishing little receiver! Notice how it pulls in foreign stations all over the world! Check its beauty and clarity on standard broadcast stations! Hear the fascinating conversations between "hams" you can pick up! Listen to ship an

Compare features! Compare smart styling! Compare the SW-54 light, compact size! And finally compare price! You'll agree the SW-54 is America's to value in radio recievers!

FEATURES:

  • Continuous coverage of AM broadcast, amateur, and world-wide shortwave bands - 540kc to 30 mc.

  • Recieves voice or code.

  • Police, ship, amateur, foreign stations clearly marked.

  • Easy-to-read indirectly lighted scale.

  • Uses miniature tubes.

  • Logging scale provided.

  • Unique large bandspread vernier knob.

  • Provision for using headphones.

  • Send-Receive switch.

  • Operates on 115 volt AC or DC.

  • Easily installed. Complete in itself with loud-speaker in cabinet..

  • U.L. approved.

    COVERAGE
    BAND GENERAL COVERAGE
    A .54 - 1.6 mc.
    B 1.6 - 4.7 mc.
    C 4.6 - 14.5 mc.
    D 12 - 30 mc.

    TUNING SYSTEM

    The signal input and HF oscillator are tuned by a two-gang variable capacitor. The tuning capacitor is driven by Main Tuning Knob and also by a large plastic vernier disk with a logging scale.

    AUDIO SYSTEM

    Two-stage audio amplifier with 50C5 output tube. Has speaker and phone output jacks.

    SENSITIVITY

    (For 50 mw output and 300-ohm antenna)

    Band A 25 microvolt
    Band B 15 microvolt
    Band C 15 microvolt
    Band D 50 microvolt

    SELECTIVITY
    NORMAL
    6 db 5 kc
    60 db 70 kc

    IMAGE REJECTION
    BAND IMAGE RATIO
    A 35 db
    B 20 db
    C 15 db
    D 8 db

    CONTROLS

    Main Tuning; Bandspread; AC OFF, Volume Control; Band Selector Switch; Speaker-Phones Switch; AM-CW Switch; Standby-Receive Switch.

    TUBE COMPLIMENT
    Conv. 12BE6
    CW OSC - IF Amp. 12BA6
    2nd Det., AVC - 1st Audio 12AV6
    Audio Output 50C5
    Rectifier 35Z5

    OTHER SPECIFICATIONS

    Antenna Input: 50-300 ohms, balanced or unbalanced.

    Size: 11" wide x 7" high x 7" deep.

    Finish: Hammertone Gray Enamel.

    Shipping Weight: 13 lbs.

    Optional Accessories: Headphones.

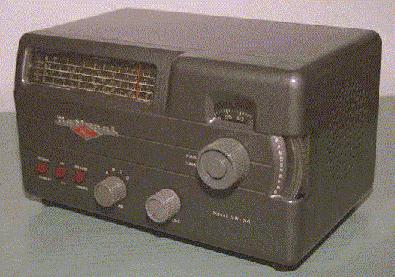

    Source: Photo from Andy Wallace
