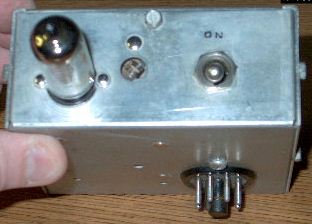

The National XCU-109 is a crystal calibrator unit specifically designed for use with the NC-109 receiver. An electron-coupled crystal oscillator is used to provide marker frequencies at one megacycle intervals. The oscillator is activated by the toggle switch located on the top of the XCU-109.

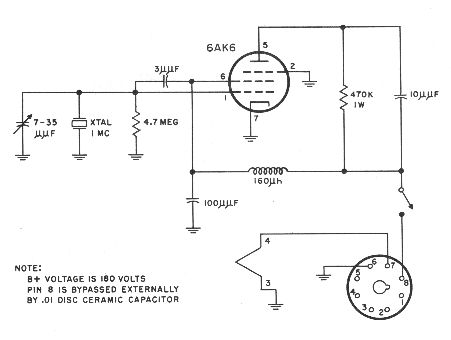

Schematic diagram of the XCU-109
